M43 - De Mairan´s Nebula (The Other Nebula)

This post is an addendum to my previous image of M42 - The Great Orion Nebula.  I basically just cropped the image of M42 I took the previous week and centered on M43, De Mairan's Nebula.  This is the other nebula that pretty much always gets imaged with the Great Orion Nebula as it is part of it. Short exposures show a separation but then you don't get the detail.

On his website Fred Espenak describes the De Mairan's Nebula as a "tear dropped shaped nebula that is physically part of the much larger Great Nebula in Orion (M42) although it appears separated by a dark dust lane in the foreground. The entire area is a complex region of active star formation where some of the hotest and brightest stars are coalescing. Composed of glowing gas and dark dust, M43 and M42 are part of the Orion Molecular Cloud Complex. This huge region also includes the Horsehead Nebula located south of Zeta Orionis (Alnitak), the easternmost star in the Belt of Orion."

M43 - De Mairan´s Nebula
Location: Monroe, CT
Date/Time: 2/5/16 9:17 pm
Camera: Canon EOS Rebel T3i, Backyard EOS
Filter: Astronomik CLS, 2" (48mm)
Telescope: Orion ED80 80mm f/7.5 Apochromatic Refractor Telescope
Mount: Orion Sirius EQ-G GoTo Telescope Mount
Autoguiding: QHY-5L-II-M attached to and Orion Short Tube 80mm
Focal Length: 600mm
Exposure: 7-300s, 10-60s, 10-10s, 1-10s (total exposure, 46min 50s)
ISO: 800
Post Processing: Deep Sky Stacker, Photoshop, Lightroom

Sunday, February 7, 2016

Imaging the Great Orion Nebula (M42) with an ED80

For most, the Orion Nebula is one of the first deep sky objects that people getting into astrophotography take since it is pretty and it is easy to spot. You don't even have to take a very long exposure to get a decent looking image. My first deep sky image was a 25 second exposure of M42 taken last year (1/1/15). I was happy with the image but I also have learned a lot since taking that shot last year and so revisited the Orion Nebula from my driveway the other night. My regular astronomy meeting with the Boothe Memorial Astronomical Society (BMAS) was cancelled because the town (Stratford) never plowed the road/parking lot to our meeting area and so, I took the following image from my driveway on 2/5/16.

M42 - The Great Orion Nebula
Location: Monroe, CT
Date/Time: 2/5/16 9:17 pm
Camera: Canon EOS Rebel T3i, Backyard EOS
Filter: Astronomik CLS, 2" (48mm)
Telescope: Orion ED80 80mm f/7.5 Apochromatic Refractor Telescope
Mount: Orion Sirius EQ-G GoTo Telescope Mount
Autoguiding: QHY-5L-II-M attached to and Orion Short Tube 80mm
Focal Length: 600mm
Exposure: 7-300s, 10-60s, 10-10s, 1-10s (total exposure, 46min 50s)
ISO: 800
Post Processing: DSS, PS

Larer, I used Adobe Lightroom to modify colors and perform a noise reduction.

I highly recommend purchasing one the online/CD books by Jerry Lodriguss. My wife purchased A Guide to Astrophotography as a gift last year and it has been very helpful. In addition to step-by-step tutorials, he also gives short video tutorials on processing with Photoshop.

Quick Processing Tutorial

This tutorial is for someone who has some knowledge and understanding of astrophotography but not at an advanced level especially since I do not consider myself advanced. Right off the bat, after I aligned the scope of course, I realized I had to wait another 30 minutes for my goto mount to do the meridian shift; however, I used that time to take test photos with and without the Astronomik CLS pollution filter.

without filter
with filter
Both images above are two minute exposures at 800 ISO. The only difference is the first image was taken without the filter and the second was taken with a filter. Based on the results I chose to use the filter. Also, these photos appear upside when compared to the images rest of the images as the camera flipped when the mount completed the meridian shift.

Step 1 - Deciding on Length and How Many Exposures
After viewing several very nice Orion images and what was feasible for my setup and time, I decided to shoot 11 - 300 second exposures, 10 - 60 second exposures, and 10 - 10 second exposures. Also, 3 - 300 second dark exposures, 3 - 60 second dark exposures, and 3 - 10 second dark exposures were taken.

Note: The reason I chose different exposure times is because the core of Orion is very bright compared to the rest. By merging the different exposures into one image in Photoshop, the brightness of the core can be reduced so the finer detail can be seen.

After reviewing the resultant sub-exposures, I deleted four of the 300 second exposures as they were streaking, most likely the wind, it was a bit breezy.

Step 2 - Stacking
I have had pretty good luck with Deep Sky Stacker (DSS) and used it to stack each set of sub-exposures, thus I had three master exposure images: 1) master_10s, 2) master_60s, and 3) master_300s. The following images are from DSS, minor processing was done there.

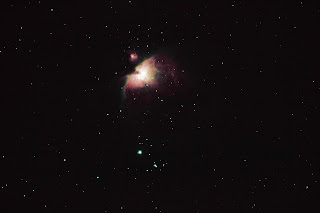

10 second
60 second
300 second
Step 3 - Processing the Stacked Images
Now I processed each of the master exposures in Photoshop. The main thing I did was neutralize the background night glow. See astropix.

10 second
60 second
300 second
Step 4 - Sizing the Images using Photoshop
The images must be the same size when merging them. This can be done easily in Photoshop by using the crop function. Choose one of the images and start the crop on a star in one corner and end the crop on another star in the opposite corner. Repeat this on the other images using the same stars to crop on. I increased the size to make make the crop more accurate.

Step 5 - Merging the Images using Photoshop (Layers & Masks)
This was the hard part and I followed instructions by Jerry Lodriguss as well a video tutorial from Dave Smith on Youtube.

The general procedure is:
1) to open two images to be merged, a short and long exposure.
2) select the short exposure and select all (Ctrl + A).
3) copy (Ctrl + C).
4) open the long exposure and paste (Ctrl + V).
5) select the mask button on the bottom of layers pallette.
6) (Alt + click) on the mask next to the layer 1 button.
7) click on the white mask exposure and paste (Ctrl + V).
8) open the Gaussian Filter under the filters pulled down menu.
9) use 30 pixels for the size.
10) open layer one to see the result.

I first merged the 10 second exposure with the 60 second exposure and then merged that new exposure with the 300 second exposure. Later, I took one 10 second exposure and merged it with the final image to improve the core even more.

10 sec + 60 sec
10 sec + 60 sec + 300 sec
You can now play with image in Photoshop, Lightroom, Picasa or any other to bring out some of the other detail.

Note: throughout this activity, I saved numerous versions. Also. the deep reddish color of my image may be due to the pollution filter. Ideally, I would go out the next night or as soon as I could and do a session without the filter to see if the color is the same. I live in a very forested part of Connecticut so it is not that easy to check this not to mention the weather. Connecticut is not exactly Arizona (my former residence for 11 years).

Other versions along the way!
                           300 sec, stacked                                 60 sec, stacked

                           300 sec, stacked, 0% saturated          300 sec + 6o sec merged

                           300s/60s/10s merged                         300s/60s/10s + 10s merged

Monday, February 1, 2016


I have an Orion 203mm (8-inch) reflector telescope (f/4.9) that came as a package deal with the Sirius GoTo mount.  However, I purchased an Orion ED80 80mm (f/7.5) refractor telescope to use with the GoTo mount for astrophotography.  As a result, the reflector began to collect dust, so I decided to give it new life by making a Dobsonian mount for it.  At first I tried to purchase just the mount but they don't exist no there own, or at least I could find one.  It seems you have to buy the scope and mount as one unit.


For my mount I basically followed the construction details outlined in Stellafane's Dobsonian Mount Construction Guide.  The following is the condensed and modified version of Stellafane's Mount Construction Guide that I used to build the mount and I highly recommend looking at it as they go into more detail about certain things. Web address Link:


The Box:  ½ inch N-N birch plywood.
The box part widths can be calculated as follows:

General Dimensions from (Stellafane Cradle)
Side Height = Tube OD + ¼" bottom gap + ¾" top gap + (2 × Plywood Thickness)
Top & Bottom Width = Tube OD + (2 × ¼" side gap)
My dimensions
Length = 2 × Primary Mirror
Side Height = 9 ¼" + ¼" bottom + ¾" top + 1" = 11 ¼"
Top & Bottom Width = 9 ¼" + ½" = 9 ¾"
Length = 16".

Cradle Hardware
I used the following hardware for the cradle assembly, and purchased stainless steel parts when possible to avoid rust:

[4] ¼-20 3 inch long Pan Head Bolt - fully threaded (retaining bolts for pressure beams)
[2] ¼-20 2 inch long Carriage Bolts - fully threaded (pressure bolts for pressure beams)
[6] ¼-20 Tee Nuts
[4] ¼ inch Washers
[2] ¼-20 Hex Nuts
[4] ¼-20 Lock Nuts
[6] Knobs for ¼-20 shafts (I was unable to find these at a hardware store or Home Depot
as Stellafane suggested, however, Amazon had them)
[2] Mending Plates (Carriage Bolt head presses on these)
[1] Large metal handle (for carrying cradle and tube.)

[1] Box of  #17 - 1¼" or 1½" wire brads
[24] 2" x 3/16" wooden dowels

The Pressure Beams and Triangles:  ¾ inch N-N birch plywood.
[2] Pressure beams 16" by 1 ½"
[8] Triangles 4 ½" per side, [4] will have a notch cut into them for the pressure beam.
Note: I made the round cuts on the Triangles for a better fit using a jig saw and fitting them to the outer diameter of the optical tube.

1)  Cut the Box Assembly to the dimensions above.
Prior assembly: 1) To the top piece drill six 5/16" holes approximately 3/4" from the edge centered over the pressure beam as recommended by Stellafane. Four holes near the ends are 1½ inches in; the two center holes in the top are centered.  Using a clamp, press six ¼-20 Tee Nuts into each hole.

2)  Assemble Wooden Parts (Box and Pressure Plates).
Assemble box with wood glue and #17 1¼" or 1½" wire brads (four per side).  For added support, I added three 3/16" wooden dowels (and glued them in) to each joined piece. Check the squareness and clamp the whole unit for 24 hrs as recommended Stellafane Cradle.  While the box is drying, assemble pressure beams.  I used wood glue, 1 5/8" deck screws, and 3/16" wooden dowels.

Ensure the optical tube will fit through the box and the Pressure plates fit into the box and that the circular cut triangles match up with the optical tube (dry run). I had to remove wood from the circular triangles in order for a proper fit. For this work I was fortunate enough to have a router to use.

3)  Assemble Hardware.
Attach mending plates to the center of the pressure plate for the pressure bolt to ride on. Install knobs for ¼"-20 shafts onto ¼"-20 Pan Head Bolts (2" long) that will be used for lowering the pressure plate.

Note: I did not leave myself enough height to for the optical tube to go through the cradle without playing with the pressure beam guide bolts.  What I ended up doing was installing knobs on the remaining four guide bolts which allowed me to raise the pressure plates evenly and allowed enough room to fit the optical tube though the cradle.

Lastly, I applied high gloss polyurethane to the entire cradle and installed felt pads to the circular triangles using gorilla glue.


The Bearings:  ¾ inch N-N birch plywood.
The size can be calculated as follows: (formula from Stellafane)
1.2 to 1.8 time the tube outside diameter, with a bias towards the large size.
My bearings are 15 inches in diameter which is a 1.6 ratio.  Note: I originally made 16 inch diameter bearings but I did not have enough laminate.

Bearing Hardware
[2] Strips of ¾ inch x 23 inch Ebony Star laminate (good luck finding, see below)
[4] #6 - ½ inch stainless steel pan head screws
[1] DAP Contact Cement

1) Cutting The Bearings.
For this job you want a nearly perfect circle. I used a router and made an arm out of quarter inch ply wood.  I then attached the arm to the router and drilled a small hole 7.5 inches from the router bit comparable to the nail that will be used to spin the router around on as it cuts through the bearing board.  This method makes a perfect circle where the edges are already squared off.

2) Applying Laminate & Finishing.
I was lucky.  Apparently I got the last bit of Ebony Star laminate (recommended by Stellafane) in the country, it has been discontinued by the manufacturer.  Jim at ScopeStuff happened to have one last bit of ¾" by 48" bearing strip left.  I cut the pieces in half and applied DAP contact cement to the laminate and bearing edge.  I applied a second coat to the bearing edge as it is very porous.  As recommended by Stellafane I put #6 - ½ inch stainless steel pan head screws at each end of the bearing for extra security. When dry, I cut the excess laminate off the bearing and filed the edges inward so as not to pull the laminate off.  Lastly, I applied high gloss polyurethane to the bearings.

3) Installing the Altitude Bearings
For this task I followed the directions provided by Stellafane.

I used masking tape to draw on and measured ½ inch down from the top corners.  Where the lines cross is the center of the cradle on the tube. Through this center point, draw a 45° line (use the bottom edge of the cradle as the 0° reference) - this is the top edge of the bearing.  Now lay the bearing on the 45° line, with the center of the bearing on the center mark.

I mounted the bearing by screwing #6 × 1 inch wood screws through the cradle from the inside.  I located 3 screw holes near the edges of the bearing and the corners of the cradle avoiding the corner triangles.  I then removed all but the diagonal masking tape and aligned and center the bearing, clamped it to the cradle, and screwed the bearing in.  to remove the tape I loosened the screws and re-tighten the screws.  I then repeated this procedure with the other bearing.

The balance point is needed to know how big to make to make the Rocker Box. To do this I inserted the tube into cradle with the heaviest eyepiece in the focuser along with all tube mounted accessories to ensure its heaviest configuration as recommended by Stellerfane and found the balance point on a table.    Now that the cradle/tube assembly is in balance, I measured from the back end of the tube to the center mark on the cradle/altitude bearings.  This number was used to make sure the rocker box has adequate height so that the telescope can point at the zenith without colliding with the bottom of the rocker box.

I measured 17¼ inches from the rotation point of the altitude bearings to the back of the tube.

The Box:  ¾ inch Furniture plywood.

Using the Stellarfane directions, I laid out the two sides, made out of ¾ plywood for added stiffness. The width should be approximately the width of the tube cradle (10¼ inches in my case).  This is not a critical dimension, so I rounded up at 11 inches even.

I measured the projection of the balanced tube from the center of rotation of the altitude bearings to be 17¼".  I added a 5" of margin for a total of 22
¼" to allow for additional tube extension for balancing a heavier eyepiece in the future.  Stellarfane recommends a margin no less than 2 inches and no more than 8 inches.

The width is critical and needs to be cut with care so your cradle can swing freely:
Rocker Box Front Width = Cradle Width + 1/8 inch Clearance Gap + (2 × Side Thickness)
For my box it was 12¼".

The height needs to be approximately 1" less than the maximum height of the Rocker Box after arc for the Altitude Bearing has been cut out.  For my it was 16".

I used the router and arm described previously only the base piece was 18" so the pivot point was 9".  I cut a second piece to used for the ground board which will be described in the next section.

Rocker Box Hardware
[1] Set of ¾" x 1" x 1/8" thick teflon pads pads
[1]  Box of  #17 - 1¼" or 1½" wire brads
[10] 2" x 3/16" wooden dowels
[1]  3" x 3/8" fully threaded pivot bolt
[1] ¼" I.D. - Plastic bushing
[1] DAP Contact Cement
[1] Formica Brand Laminate 30-in x 96-in Ouro Romano-Etching Laminate

1) Cutting & Assembly.
Unlike the Altitude Bearings themselves which had to be perfect circles, the two sides of the rocker box don't need to perfectly circular, they just need to be identical.  I clamped them together, traced a line using the altitude bearing as a guide onto the panel, then used a jig saw to cut the pieces to size.

I then cut the front panel to size with a table saw.  I drilled two 1½" holes into the front approximately 2" from the top of the panel and 5" from each other and used a jig saw to cut a handle for the Rocker Box.  Lastly I cut the bottom as described previously.

I assembled the Rocker box with wood glue and #17 1¼" or 1½" wire brads (four per side). For added support, I added two 3/16" wooden dowels (and glued them in) to each joined piece.  I attached 5" diagonal triangles just below the handle for added strength with wood glue and wooden dowels.  Check the squareness and clamp the whole unit for 24 hrs as recommended by Stellerfane.

I traced two perpendicular lines through the center of the bottom piece and then set the rocker box onto it.  I centered the rocker box onto the bottom as best as possible and the traced the outline onto the bottom.  Then I removed the box, and marked the location of 4 holes centered on the edges and approximately 1¼ inches in from each end.  Next, I drilled with out with a 1/8 inch drill bit, flipped the bottom over and countersunk each hole.  I then screwed and glued the rocker box to the bottom.  I used 1 5/8" deck screws.

2) Beginning the Azimuth Bearing.
The azimuth bearing is formed between the rocker box bottom and the ground board teflon pads, rotating on a pivot bolt the connects these two parts. We will now construct the rocker box portion of this bearing.  For this I drilled a 3/8" hole for a 3/8" pivot bolt.  I then purchased a plastic 3/8" I.D. bushing from a local hardware store (Home Depot had none). Rather than install this directly onto the rocker bottom, I put it onto a
¼" piece of plywood 5" x 6" and then screwed and glued that onto the rocker bottom.

Remember I said I got the last of the Ebony Star Laminate for the altitude bearings.  Well I had a couple of options such as using an old album or using a different laminate.  I was going to use the album (in fact I purchased Kenny Rogers Christmas Album from Ebay for $2.00) but decided to use an inexpensive laminate (Formica Brand Laminate 30-in x 96-in Ouro Romano-Etching Laminatefrom Lowe's because the teflon sliders could be spaced farther apart.  After cutting this to size I applied contact cement to both surfaces according to the directions and let it dry.

3) Sand & Seal.
Finally I sanded the rocker box and sealed it with I applied high gloss polyurethane.  Lastly, I installed the 1" x ¾" teflon pads with screws which came with the pads purchased from Jim at ScopeStuff.


The Board: ¾ inch N-N birch plywood.
There are a lot of options for the ground board (see Stellarfane), however, I chose the easiest construction especially since I had cut the board to size already when I made the rocker box bottom.

Ground Board Hardware
[3] Hockey pucks
[3] 1 5/8" deck screws

[1]  3" x 3/8" fully threaded pivot bolt
[1] ¼" - #20 Tee Nut
[3] ¼" Washers
[1] ¼" - #20 Wing Nut

1) Drilling & Cutout.
After cutting the board with the router previously described when I made the rocker box bottom, I up drilled the center pivot hole, which must be drilled out to fit the 3/8 inch threaded Tee-nut. My Tee-nut had a 7/16 outside diameter, and we drilled the center hole to this size. I then sealed the board with high gloss polyurethane.

2) Ground Board Assembly.
As recommended by Stellarfane, I used three hockey pucks for the feet as they are weather proof and raise the ground board enough for the pivot bolt to be secured on the bottom.  I used gorilla glue and 1 5/8" deck screws countersunk into the board.  These were attached at the edge of the ground board 120 degrees away from each other.  Next, I attached the 1" x 1" teflon pads with screws which came with the pads courtesy of Jim from ScopeStuff.

All that is left to do is assemble the ground board to the rocker box.  For this I put a 3/8 inch Fender Washer (1½ inch diameter) on a 3" x 3/8" hex bolt and screwed it through the ground board.  Following this I put another 3/8 inch Fender Washer on the bolt and then set the rocker box onto the ground board.  I then set another 3/8 inch Fender Washer followed by a 3/8 inch wingnut to secure whole assembly.  Finally I checked to make sure the rocker box rotated smoothly on the ground board.  It works beautifully!

The mount works really well, however, it sits very low for someone tall. Orion, which most of my equipment comes from, has a nice telescope stand for $140, however, as someone else pointed out, it is just four pieces of wood stuck together so I decided to make my own. I saw a homemade stand on the 10-minute astronomy website and used it as a model for my stand although I made several modifications.

To start, I cut out a 'T' in some of the leftover ¾" Furniture plywood.  The size was governed by the placement of the ground board feet.  The legs sit under the ground board feet.  In my case the width 4½ inches, the top of the 'T' was 20 inches, and the front piece was 13 inches from where it met the the top piece.

The legs consist of leftover deck boards a little over 3 inches in width and 12 inches in length.

I first made the back legs by attaching two pieces to form an 'L' shape with wood glue and deck screws countersunk in the wood.  Then I attached them to the 'T' under where the feet will go with glue and more deck screws.  I did not attach a second piece to the front leg at first, however, upon checking the stability, I attached a second piece in a 'T' shape using wood glue and deck screws.

The stand was solid, however, there was a little play when I moved the scope so I decided to do overkill and add more support.  I attached a 1" x 2" to the back legs and then another 3" diameter deck board from the front leg to the middle of the 1" x 2".  Again, I used wood glue and deck screws to attach the support beams to each other and to the legs.

Finally I paint the stand with with outdoor black paint.


Tool List
Table saw
Two cordless drills/screw drivers
Router with homemade wooden arm attachment, nail is the turning pivot point
